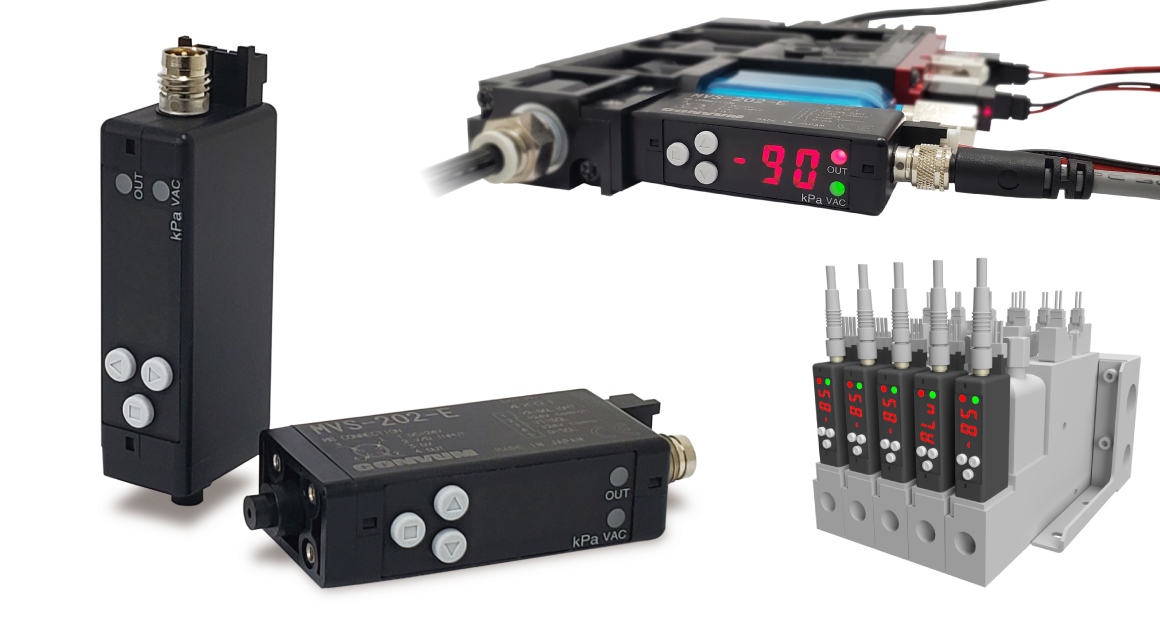

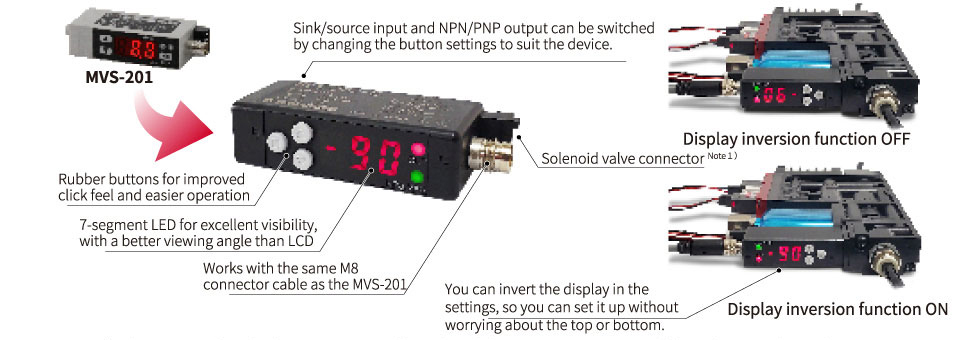

Energy-saving pressure sensor with solenoid valve control
MVS-202 Series

PC Operate the ejector on

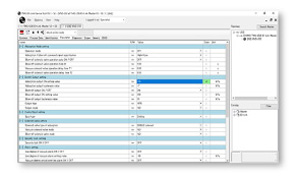

• ・Change various settings (operation, threshold, etc.)
• ・ON/OFF operation of vacuum/break solenoid valve
• ・Zero reset
• ・Saving and copying setting information
• ・Check ejector status and warnings on PC
• ・Installation in hard-to-reach places without button operation

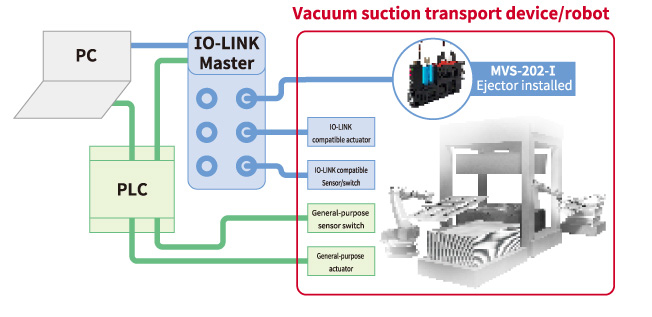

Installed in our ejector/vacuum switching valve

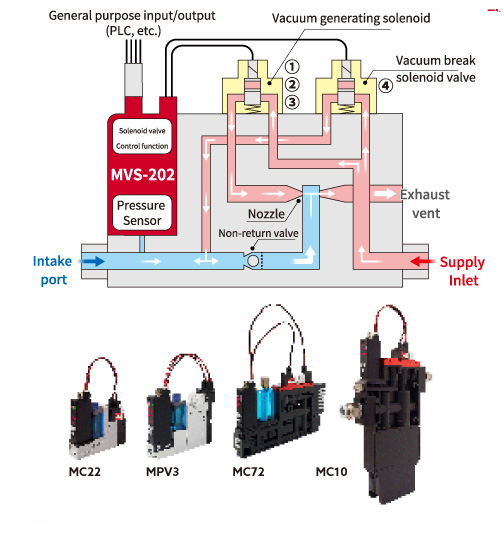

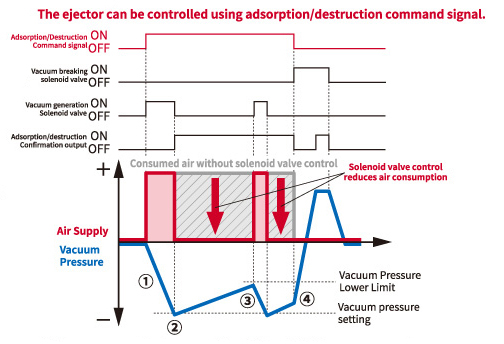

①When the suction/break command signal is turned ON, the vacuum generation solenoid va

②When the set vacuum pressure is reached, the vacuum generation solenoid valve closes, cutting off the a

③During suction, if the vacuum pressure decreases due to a vacuum leak and approaches the lower limit, the vacuum gene

④When the suction/break command signal is turned OFF, the vacuum break solenoid valve opens and compressed air is released from the vacuum port of the ejector, allowing the workpiece to be quickly released

　Note）There is also a suction mode in which the vacuum generating solenoid valve is constantly ON.
Please check the catalog for [Various Suction Modes].

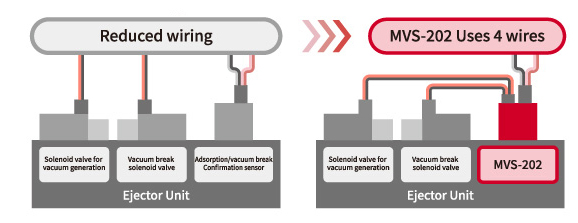

Reduced wiring

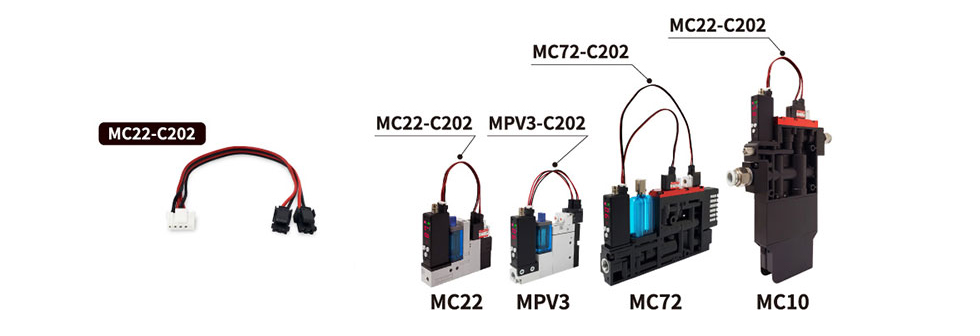

M8 connector cable (2m) 　MPS-ACCL8

　Brown: 24V
　White: Suction command signal IO-Link specification: N.C
　Blue: 0V
　Black: Suction/destruction confirmation signal (OUT1) IO-Link specification: C/Q signal

A warning is displayed (blinking) if there is a drop in the achieved vacuum pressure (peak value) due to deterioration of the suction pad, or a delay in the time to reach vacuum/break due to a clogged filter or foreign matter.

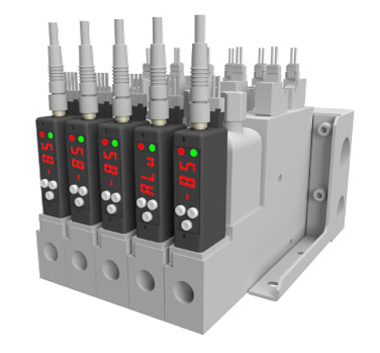

With manifold-type ejectors, you can visually check which model is faulty

This can disable button operation caused by unintentional contact or operator error.

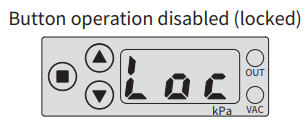

You can switch between lock and unlock by pressing the ▼ key while pressing the ■ key.
