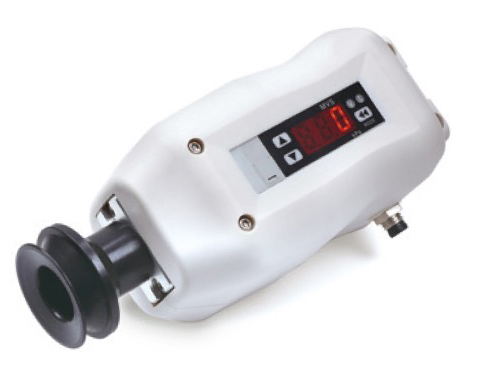

e・HAND SGE Series

No compressed air required

Compressed air is not required.
E-Hand has built-in Vacuum pump

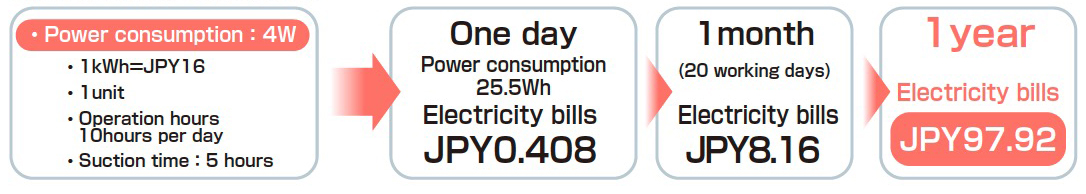

Energy saving

Power consumption 4Watt
Reduce electrical bills yearly

Operational conditions

*Price based on Japanese yen
Survey conducted by Convum

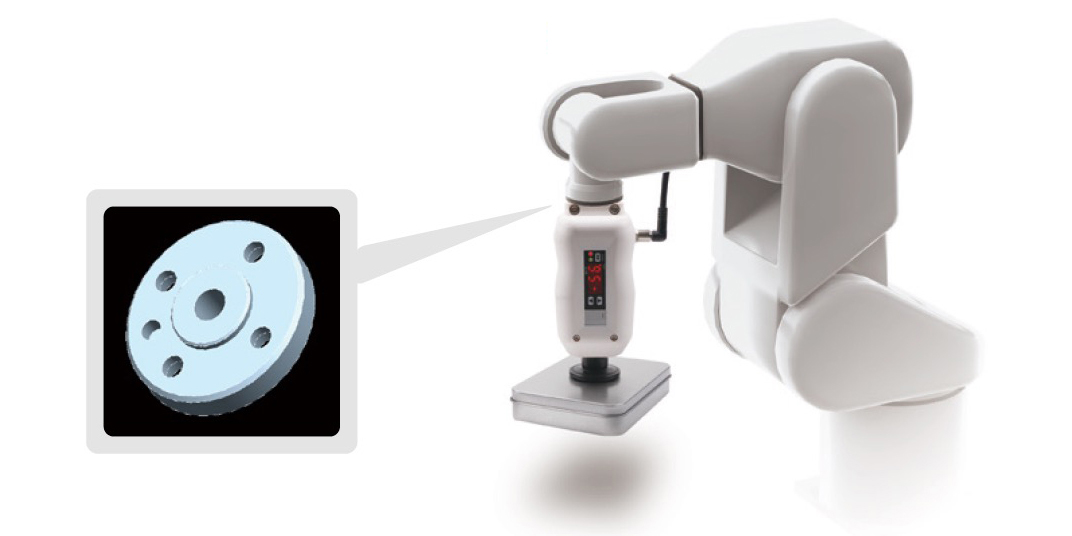

Applicable for use with Robotic Arms

Adaptive flanges can be prepared for
use with collaborative robotic arms
Compact・Light weight
Compact and light weight to be
used with 0.5~3kg payload
collaborative robots

Mass260g
Applicable suction cup size
- Cup diameter: 010~30
- Setting screw : M5
- Theoretical lifting force (N)
  010: 4.5,020: 17.9,030 : 40.3
  ※At vacuum pressure,-57kPa

No compressed air required
