Vacuum Hand for Kraft Paper Bags

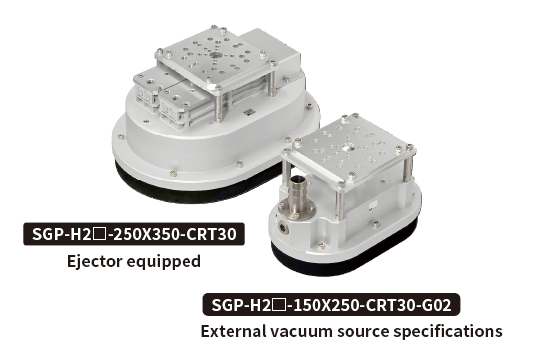

SGP-H2 Series
SGP-H3 Series

SGP-H2/H3 Series

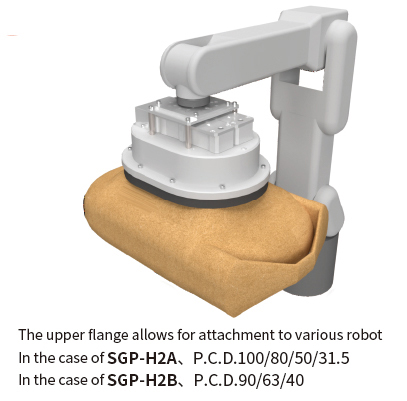

Buffer Flange

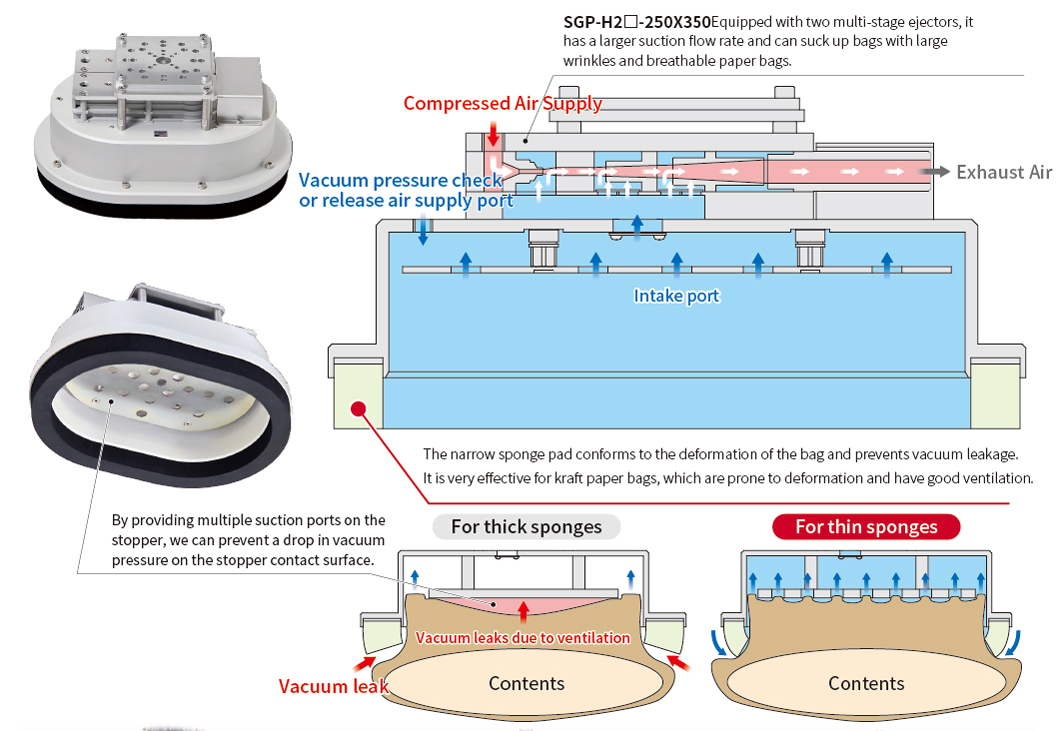

  • Ideal Robot Hand for Vacuum Handling of Air-Permeable Kraft Paper Bags.

    SGP-H2/H3 Series
    SGP-H2/H3 Series

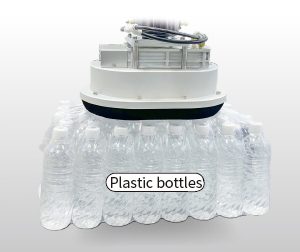

    Shrink Wrapping (20 kg)

    SGP-H2/H3 Series

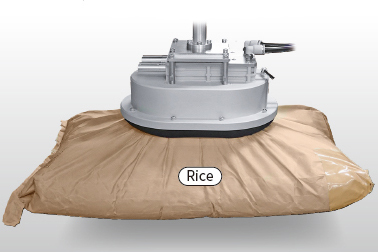

    Kraft Paper Bag (30 kg)

    SGP-H2/H3 Series

    Corrugated Box with PP Band

  • With the lightweight resin body type (SGP-H3), a 25 kg kraft paper bag can be handled by a 30 kg payload robot.

    SGP-H2/H3 Series

    KYDEX® is a registered trademark of Sumitomo Bakelite Co., Ltd.
    KYDEX® is a material with excellent chemical resistance and high impact resistance comparable to polycarbonate.
    It has been adopted for a wide range of industrial applications, including medical devices and railway vehicle interiors.

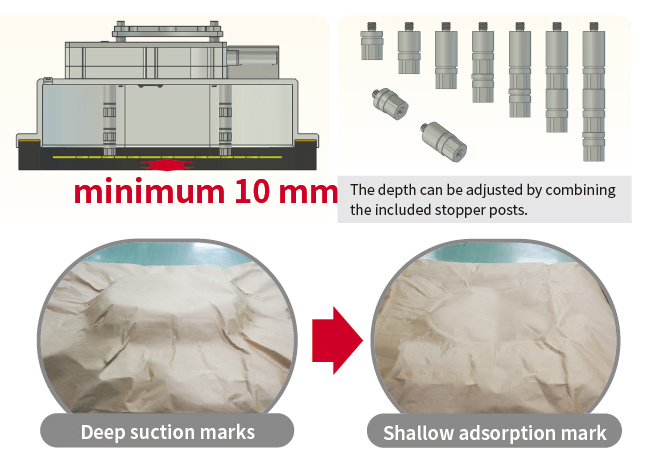

  • Reduce suction marks by adjusting stopper depth.

    SGP-H2/H3 Series

    Plastic bag (30 kg)

    SGP-H2/H3 Series

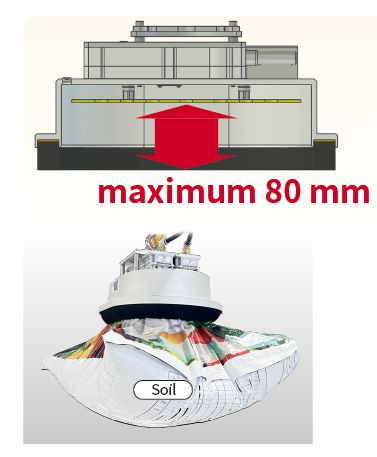

    When the stopper is set shallow, the amount of bag material drawn into the pad is reduced, which helps minimize suction marks.
    Conversely, when the stopper is set deeper, more bag material is drawn into the pad, increasing the contact area and improving holding force.
    Please adjust the stopper depth to suit your application requirements.

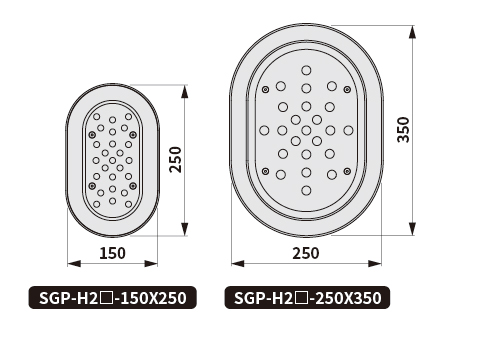

  • Two sizes available to suit different bag sizes.

    SGP-H2/H3 Series
    SGP-H2/H3 Series
