Reduces air consumption when adsorbing workpiece
Mechanism
EC1 is equipped with energy saving system that does not use electric control.
Vacuum is generated when compressed air is supplied.
When reaching the set vacuum pressure, vacuum generating will be automatically stopped.
In case of workpiece which does not have vacuum leakage, vacuum will be retained by check valve inside.
When vacuum is getting lower, vacuum is automatically generated again to prevent the pressure reduction.
This operation is continued until compressed air is cut off. -

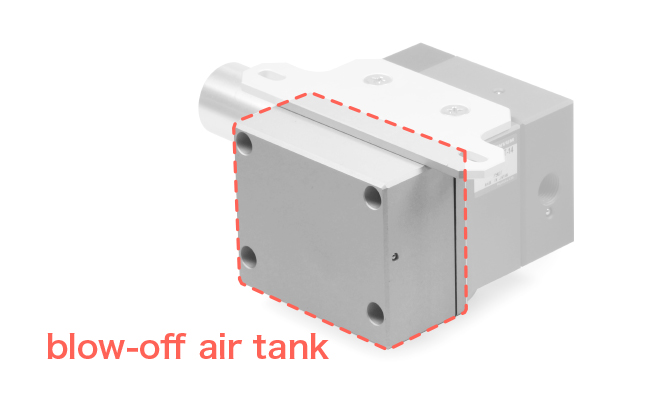

With blow-off air tank
When supplied air is stopped, compressed air
in the tank is blown out from vacuum port
and vacuum break is mechanically done.
-

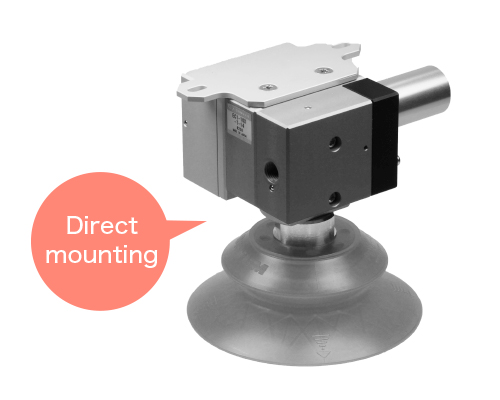

Mountable to suction cup directly
Suction cup is mountable to EC1 directly.
Energy-saving Mechanical ejector
EC1
Series
