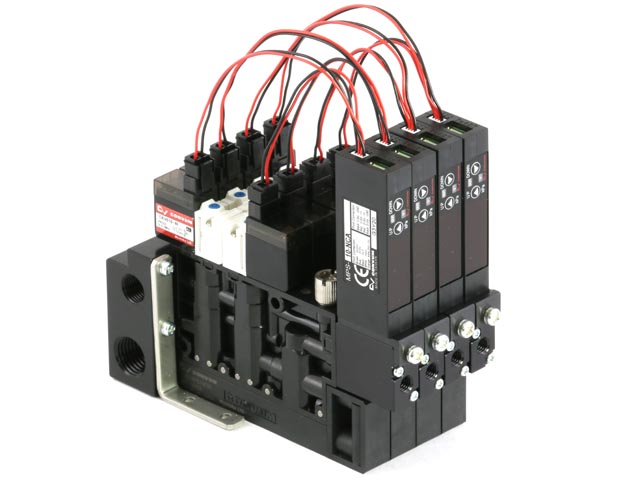

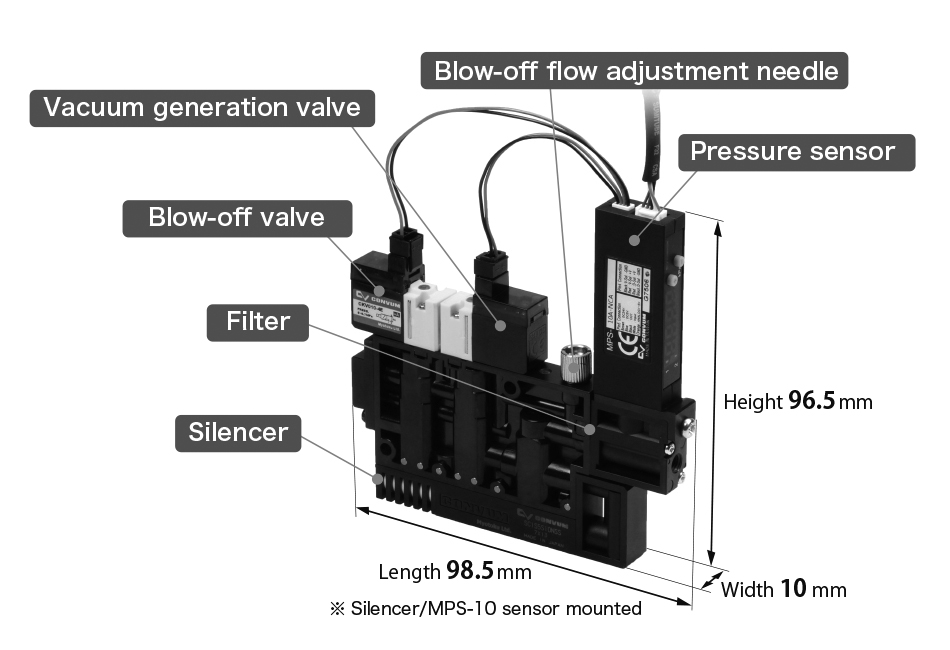

All-in-One Unit
Compact/Light weight
Weight 87g (Single unit, without sensor)
※ The photograph is with MPS-1010mm width body
Resin body
Air consumption reduced
Air consumption is only 10L/min(ANR) by special X nozzle.

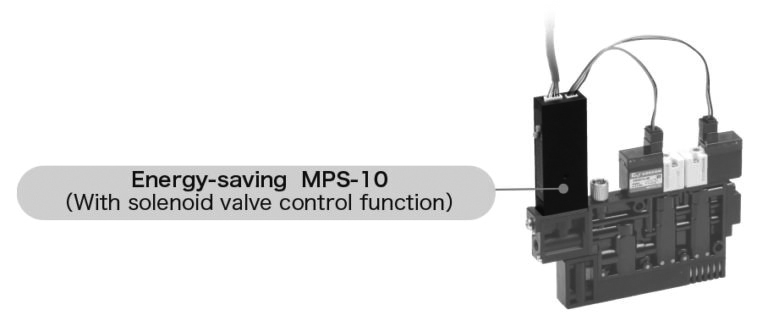

50% reduced ※Compared with MC22 seriesWhen using the energy-saving pressure sensor
Air consumption can be reduced up to 60%!
（※ According to our measurement condition）
Electricity rate can be saved by 28,224 yen per year！
（※ The work piece without air permeability）

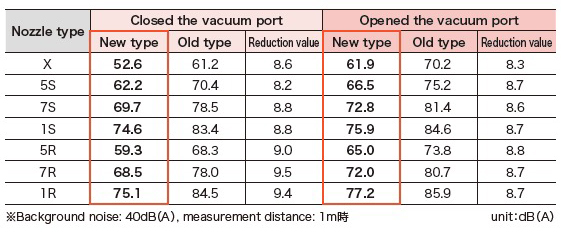

Low noise
Owing to the improvement
of silencer structure
（Up to 12％ reduced）
Reduced noise level
significantly
Reduced 8.7 dB（A）
on average
In addition to silencer exhaust, concentrated exhaust can be selected
Exhaust the air to outdoor together
Can be used in the clean room, etc
Compact Energy-savings ejector
SC1
Series
