Compact ejector SC2 Series

All-in-One Unit

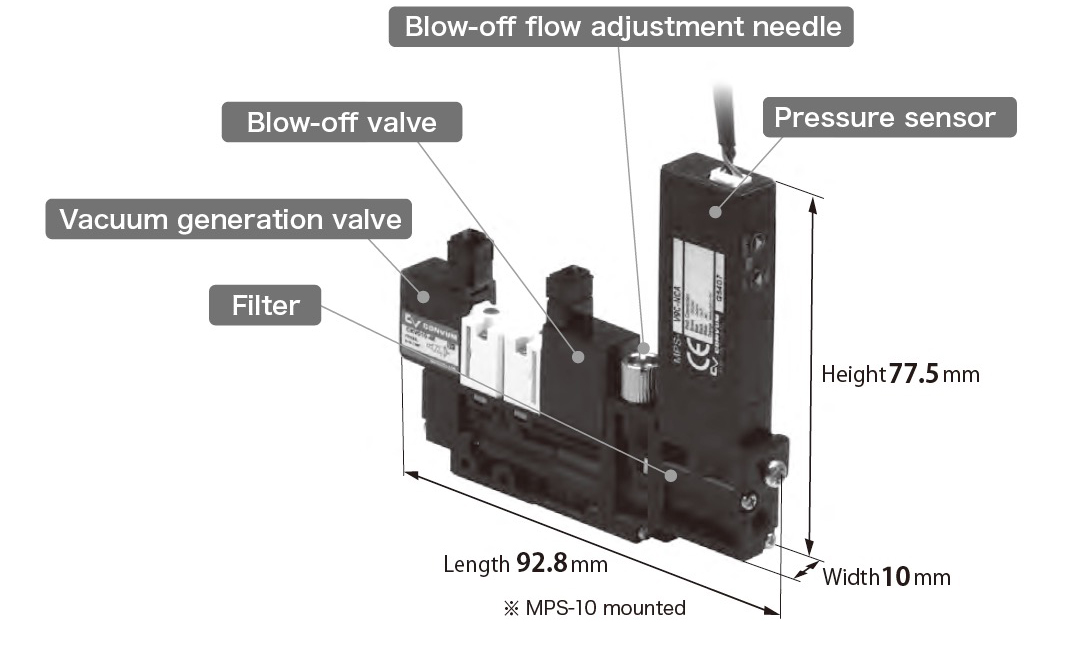

Compact, light weight

Weight 53g（Single unit/without sensor）
※ The photograph is with MPS-10

Width 10mm

Resin body
Quick response

Vacuum response time 20ms
※ Condition：05HS type, up to -60kPa
Tube : φ4/φ2.5X50mm

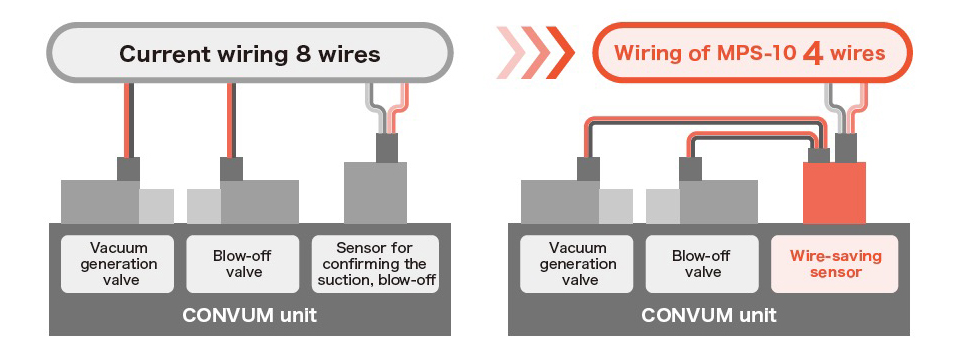

Less wiring

Wiring of I/O to PLC only need one five-cable.
Wiring of vacuum generation/blow-off valve is unnecessary.
It can save the space for the device, reduce the sequencer loading,
and the operation time of electrical wiring.

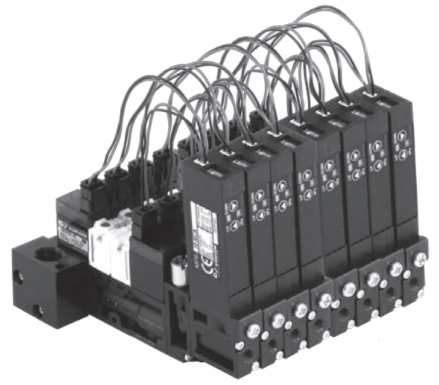

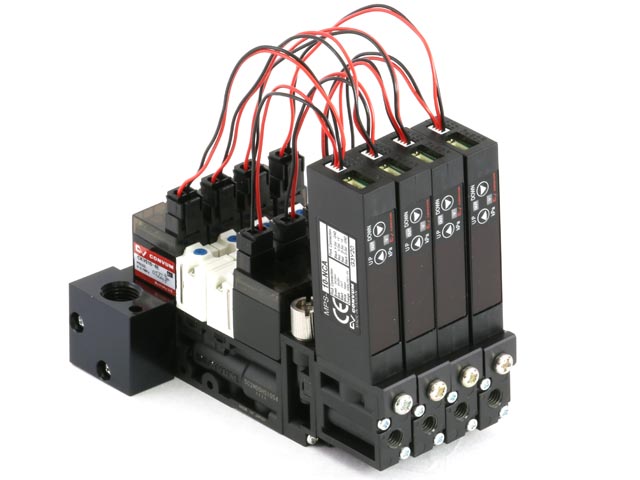

Up to 8 units can be mounted on the manifold

Manifold can get the supply air together

SC2 with different specifications can be putted
together according to various purposes

All-in-One Unit
