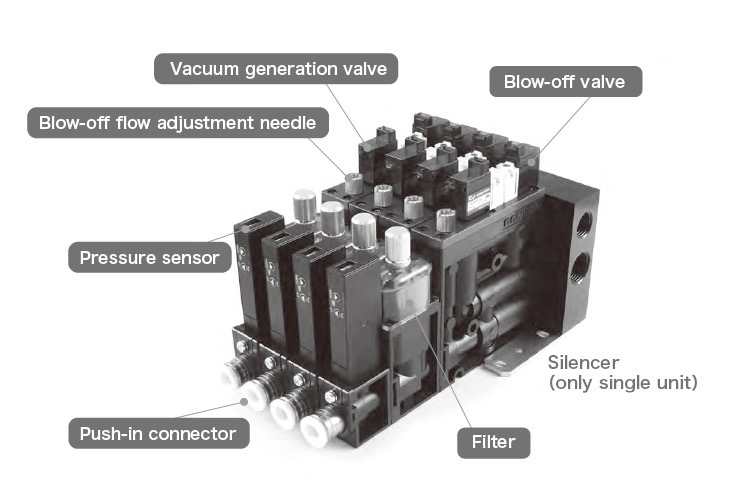

Medium size smart vacuum ejector unit SC3 Series

Can select the combination flexibly-stage nozzle is available

Free selection of with or without sensor, filter

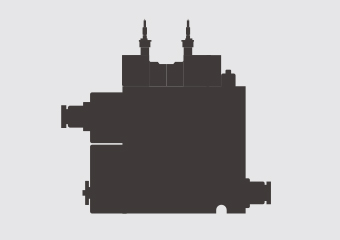

Only bodye

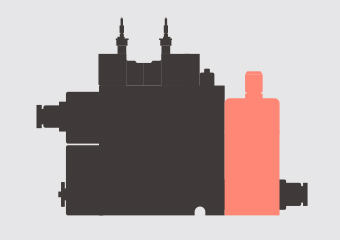

With filter

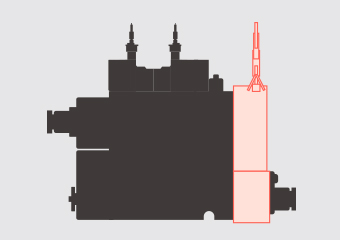

With sensor

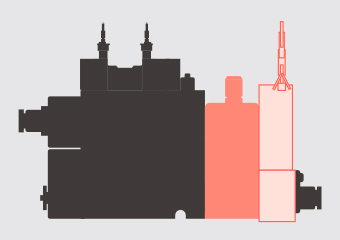

With filter + sensor

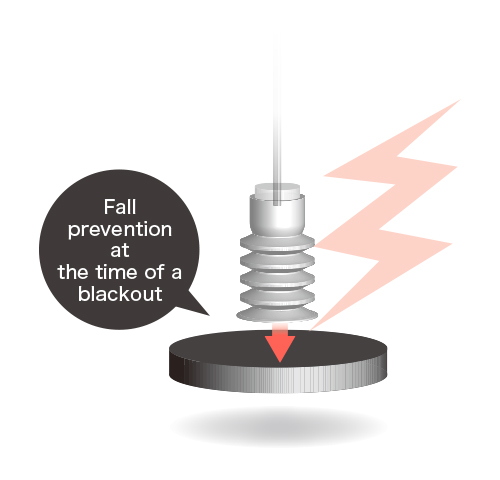

Holding workpiece at an emergency stop

With self-holding valve,
it is possible to keep vacuum, and
prevent the workpiece from falling.

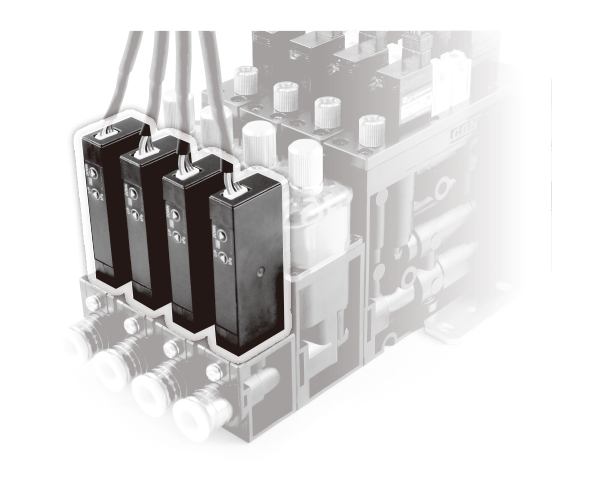

Air consumption will be reduced

More than 50% of air consumption can be saved with the MPS-10 energy-saving sensor

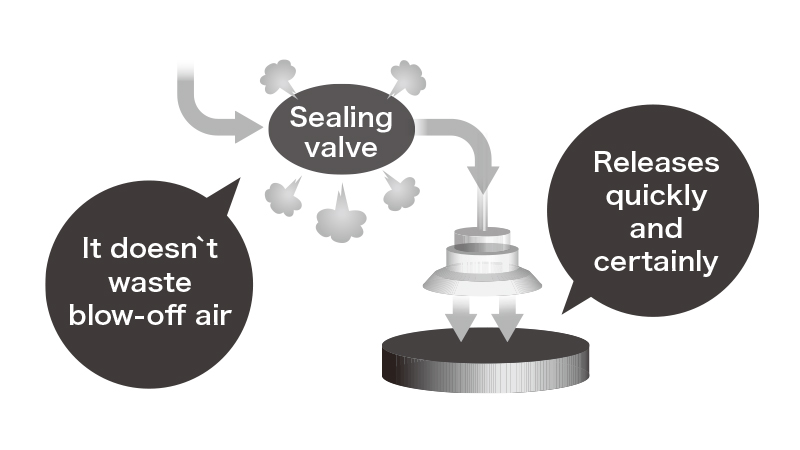

Releases workpieces quickly and certainly

Mounted with the check valve that can be used to
release workpieces without wasting blow-off air
※Max 200L/min（ANR）
It is operatable with supply pressure 0.25 MPa at the minimum
multi-stage nozzle available

Multi-stage nozzle can be selected

Compact design, high suction flow

Can select the combination flexibly-stage nozzle is available
