ESD Electrostatic Discharge Protection Cup
ESD Series

ESD Series
catalog

  • Developed “Elec-Con,”a proprietary material specialized for ESD performance.

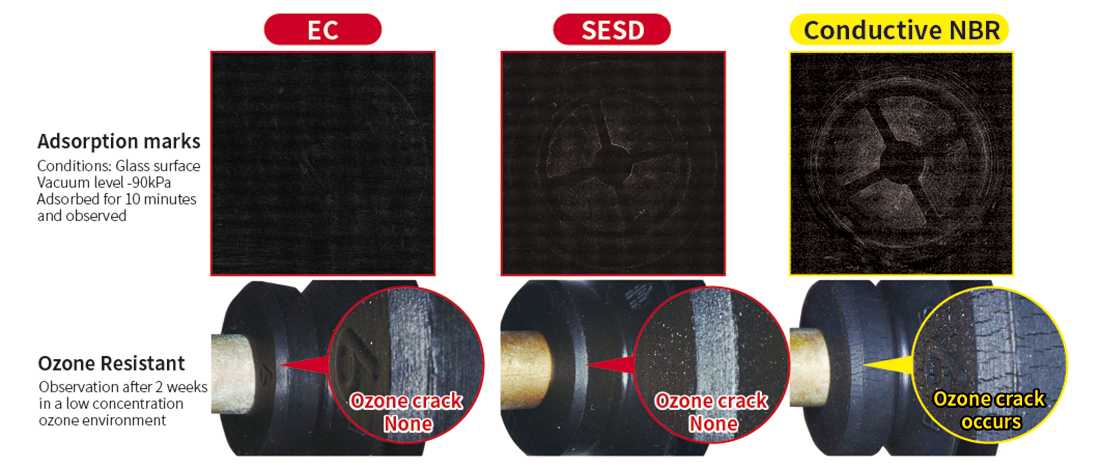

    Non-marking, silicone-free, and ozone-resistant, allowing use with ionizers.

    ESD Series

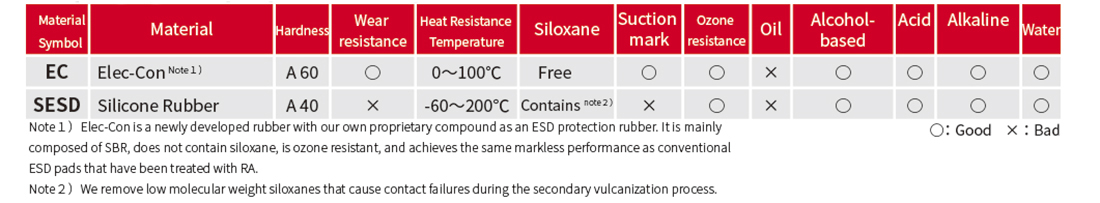

    Simplified Physical Properties Comparison Table

    Material Code Material Hardness Mechanical Properties
    Abrasion Resistance    		 Heat Resistance Siloxane Suction Marks Ozone Resistance Oil Alcohol Resistance Acid Resistance Alkali Resistance Water
    EC Elec-Con
    *Note1    		 A 60 ○ 0～100℃ Absent ○ ○ × ○ ○ ○ ○
    SESD Silicone Rubber A 40 × -60～200℃ Present *Note2 × ○ × ○ ○ ○ ○

    ○：Good　×：Poor

    *Note 1）Elec-Con is our proprietary rubber compound newly developed for ESD protection applications. Using SBR as its main component, it is siloxane-free and ozone-resistant, while providing non-marking performance equivalent to that of conventional RA-treated ESD caps.
    *Note 2）During the secondary curing process, low-molecular-weight siloxanes that can cause contact failures are removed.

    “Elec-Con” is a registered trademark of CONVUM Ltd.

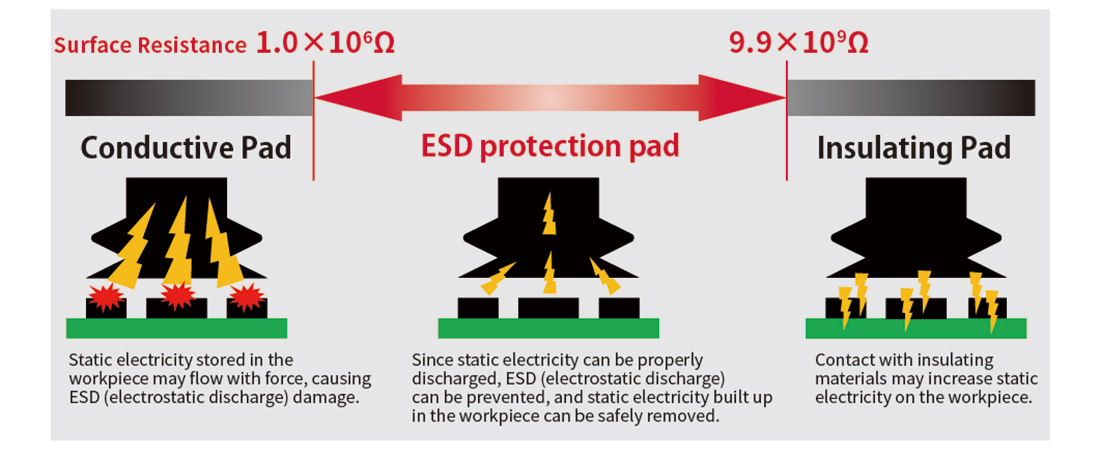

    All products are inspected to ensure surface resistance values of 1.0 × 10⁶ to 9.9 × 10⁹ Ω.
    Prevents damage to electronic components caused by ESD (Electrostatic Discharge).

    ESD Series

    Our surface resistance measurements are conducted in accordance with ANSI/ESD STM11.13. The standard defines the static dissipative range as a surface resistance of 1.0 × 10⁴ to 1.0 × 10¹¹ Ω. However, we maintain a stricter control range of 1.0 × 10⁶ to 9.9 × 10⁹ Ω, inspect every product before shipment, and provide an inspection certificate.

    ESD Series

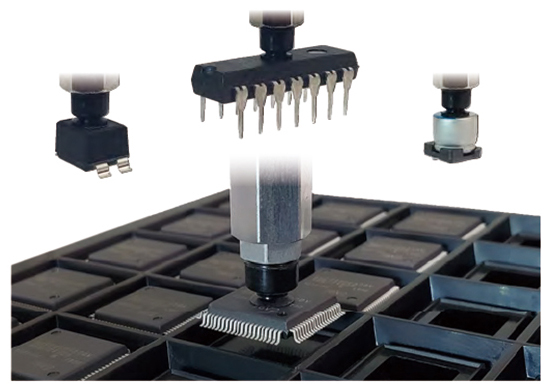

    Suction of Electronic Components

    ESD Series

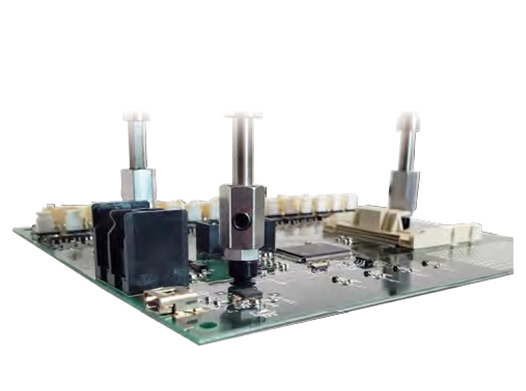

    Suction of Printed Circuit Boards

    Material-based ESD protection minimizes variation in surface resistance.

    ESD Series

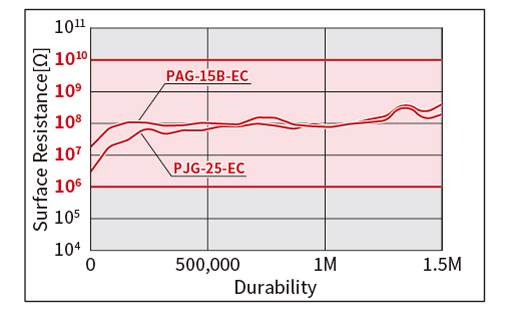

    Unlike coating-based ESD protection, conductivity is controlled through the material formulation itself, resulting in stable surface resistance values.

    Test Conditions

    Vacuum Pressure: -60 kPa
    Workpiece Weight: 16g for Ø10 mm and larger,3.5g for smaller than Ø10mm
    Suction Cycle Time 2s Continuous operation for 24hours
    (Used approximately 40,000times per day)

    Caution) Variations in surface resistance values are not guaranteed.

  • Flat and bellows-type caps are available up to Ø30.

    ESD Series

    Flat Cup
    PFG series

    ESD Series

    Thin Lip Cup
    PAG series

    ESD Series

    2 Bellows Cup
    PJG series

    ESD Series

    3 Bellows Cup
    PC series
