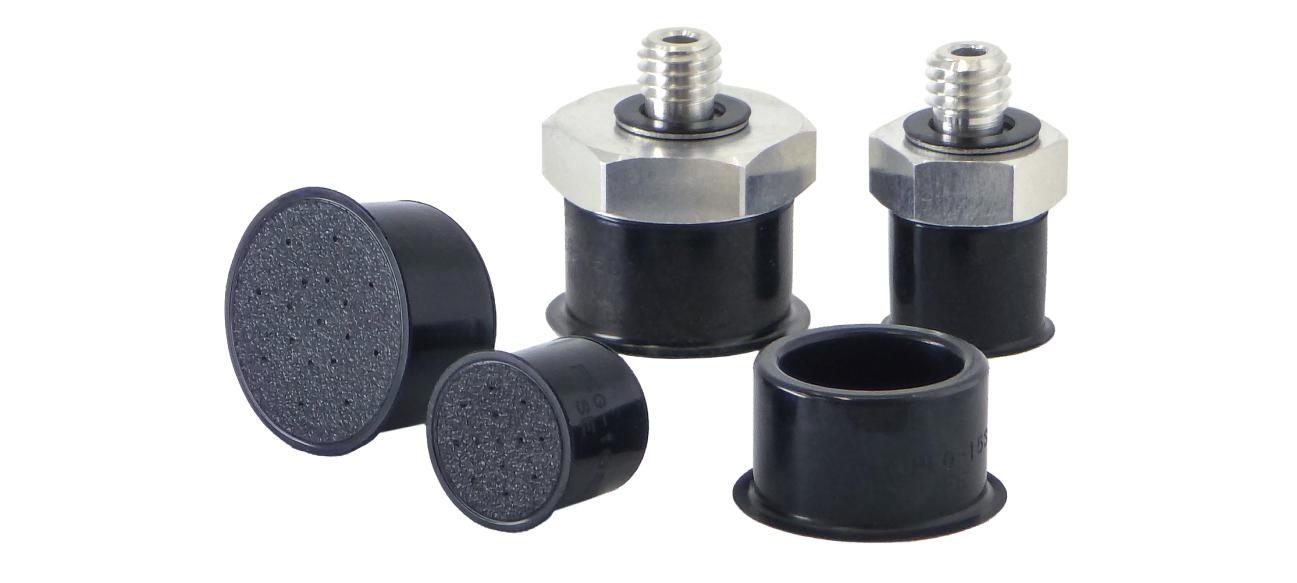

Plastic Deformation Prevention Pad PE-S Series

Minimizes Suction Stress on Thin Workpieces.

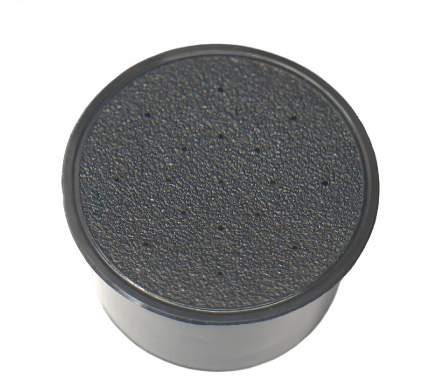

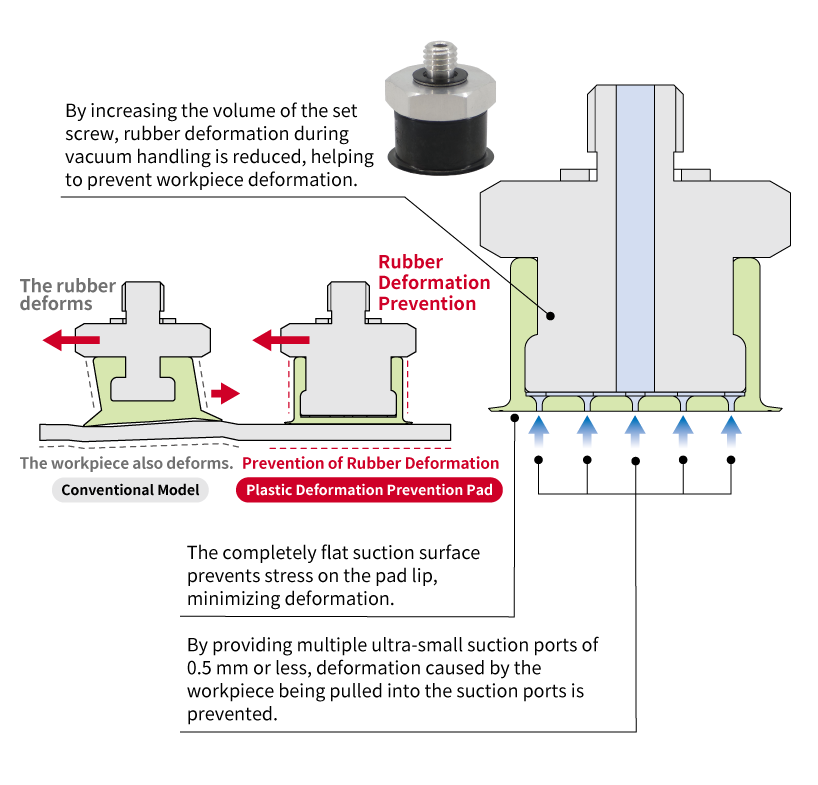

Plastic Deformation Prevention Pad Suction Surface

The suction surface features a coarser embossed texture than conventional pads, significantly reducing adhesion to the workpiece. The embossed structure allows air to flow through the gaps, preventing deformation caused by flow channels (patterns).

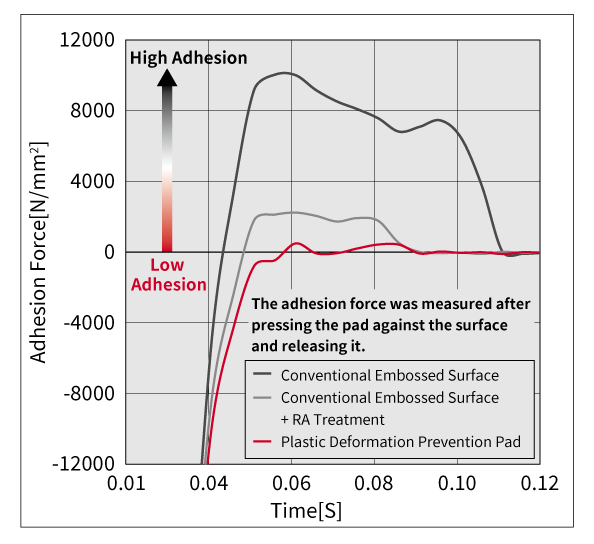

Adhesion Test Results

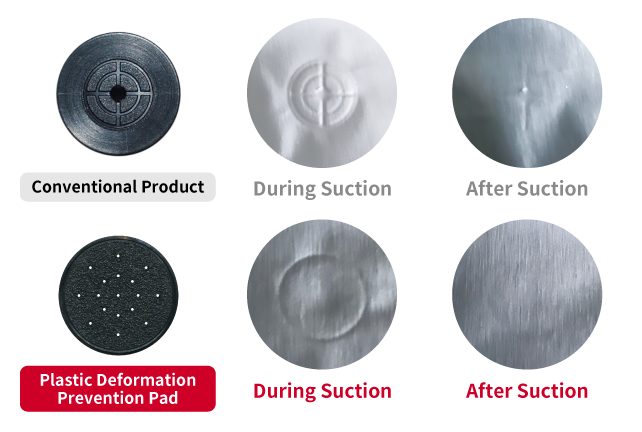

Comparison of Suction Marks

（Workpiece: Aluminum Foil, Thickness: 11 μm, Vacuum Pressure: -90 kPa）

Note) The data are based on our test conditions and are provided for selection reference only. Prevention of workpiece plastic deformation and adhesion is not guaranteed.

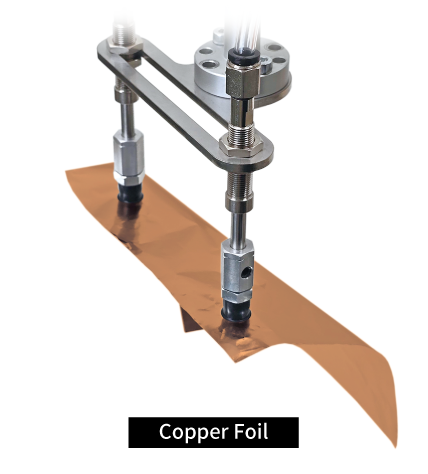

Metal Foil Suction

Metal Foil Suction

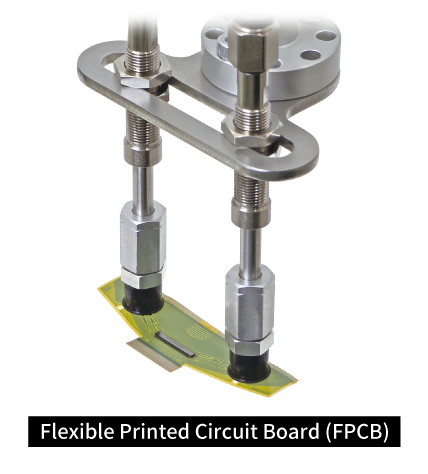

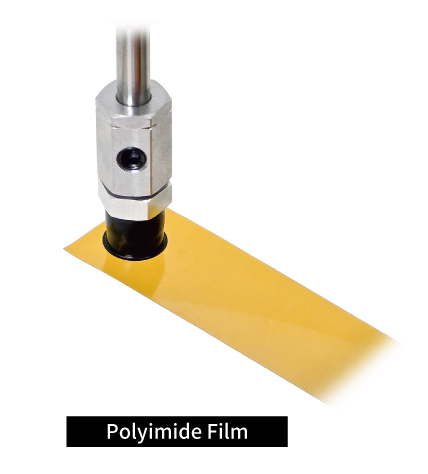

Flexible Printed Circuit (FPC) Suction

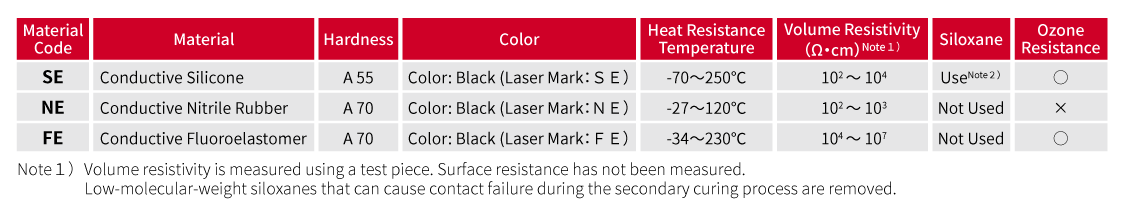

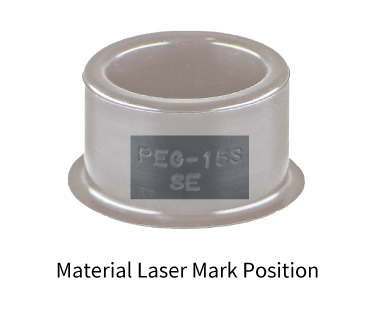

The pad is made of conductive rubber that dissipates static electricity.

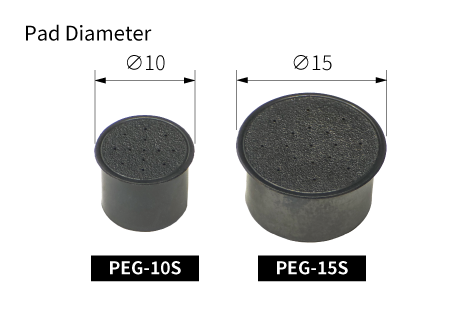

Two pad diameters are available.

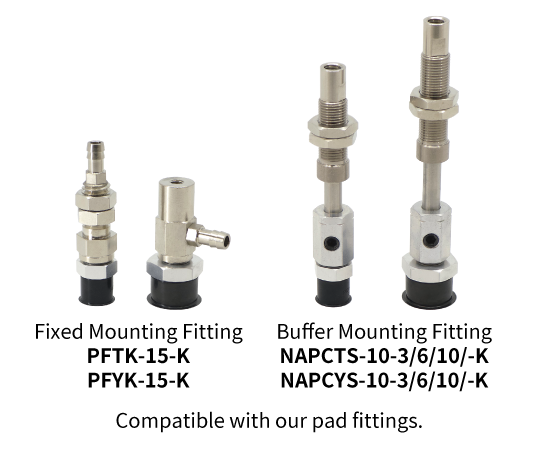

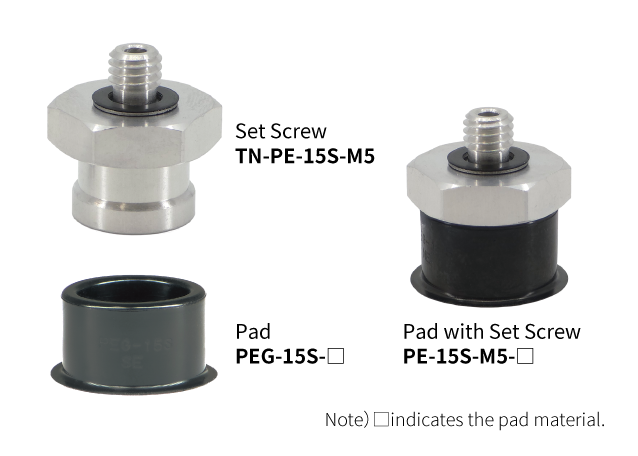

The snap-in fitting and retaining screw allow easy installation and removal.

Minimizes Suction Stress on Thin Workpieces.
