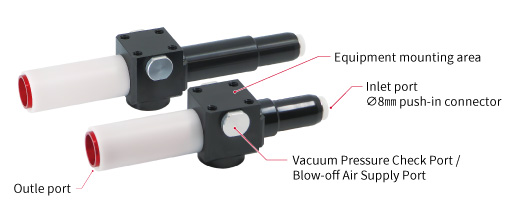

An ejector that is compact, lightweight,and has high suction power.

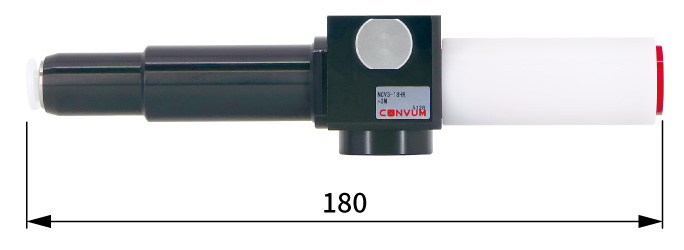

NCV3-18HR-3M
149g 135L/min(ANR)

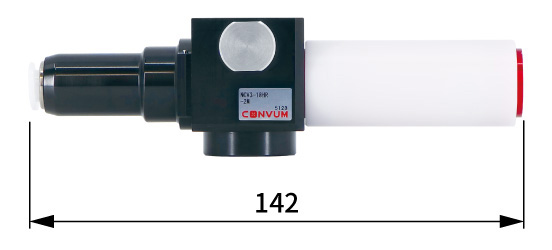

NCV3-18HR-2M
131g 115L/min(ANR)
Rated pressure0.3MPa、Maximum vacuum pressure-85kPa

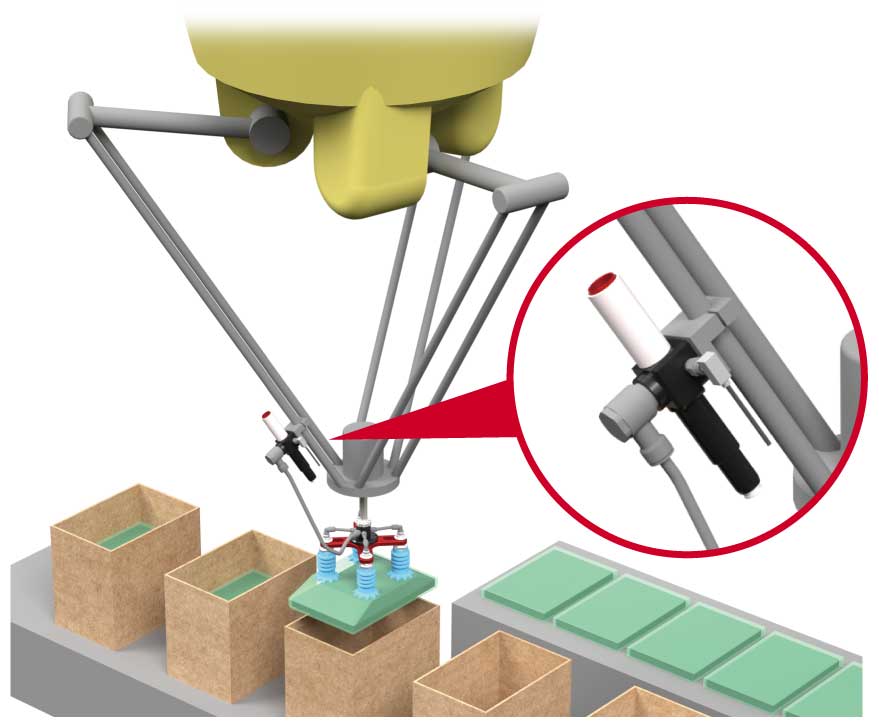

Due to its compact and lightweight design, it can be installed close to the suction cup. By shortening the vacuum piping length, loss of suction flow rate is reduced, making it suitable for applications such as bags and permeable cardboard that are difficult to handle by suction.
Suction for bag workpieces

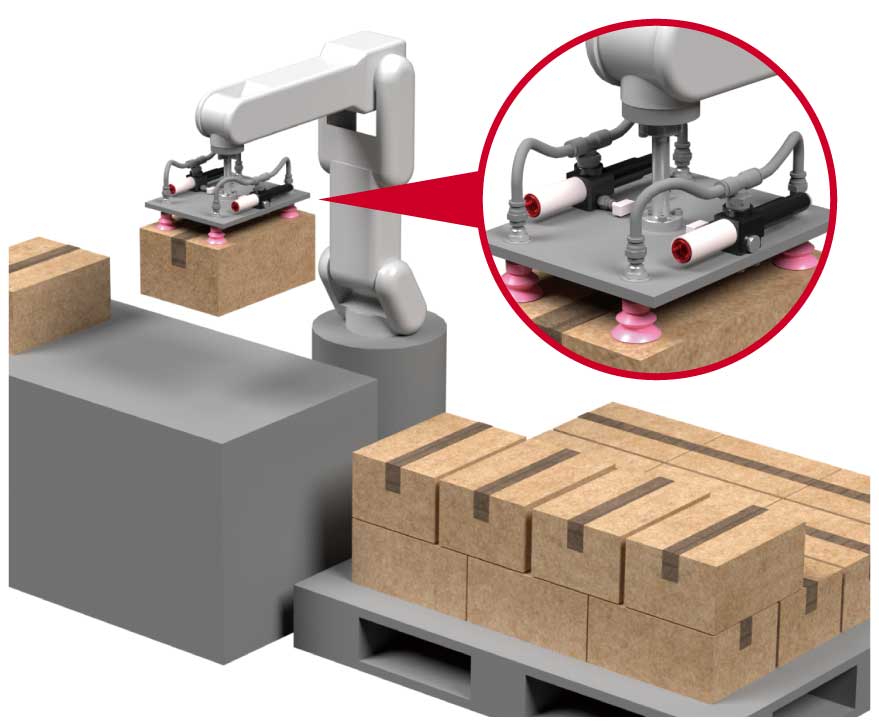

Suction for Corrugated Cardboard
-

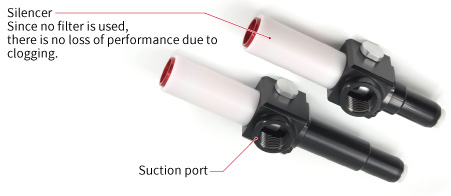

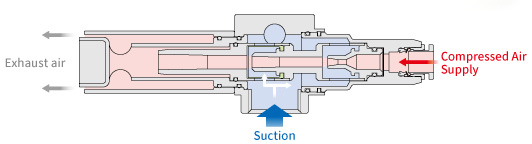

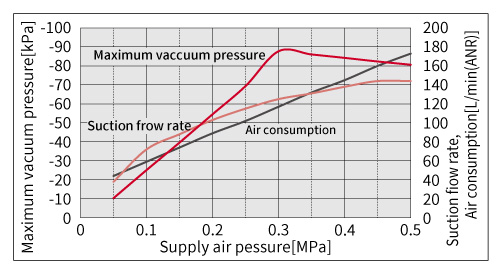

Selectable nozzle stages to suit suction flow rate and installation space.
NCV3-18HR-2M
NCV3-18HR-3M

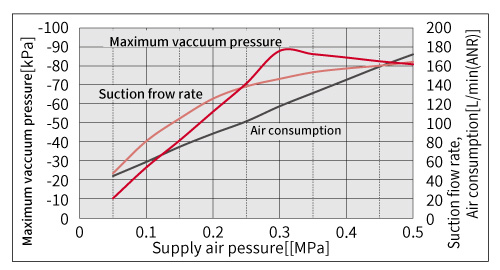

NCV3-18HR-2M
NCV3-18HR-3M
Note）The performance data shown are measured values obtained under our specific test conditions and are not guaranteed specifications. Please use them as a reference when selecting and using the product.
-

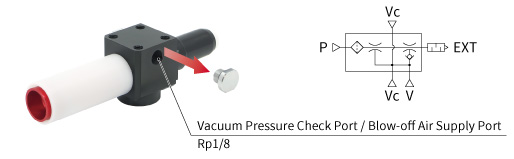

Pressure sensors can be mounted and blow-off air can be supplied from both sides of the unit.

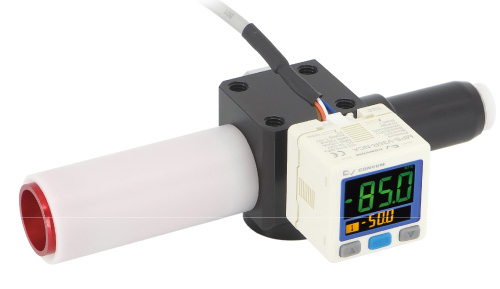

Pressure sensor with dual display and three-color indication
MPS-35 series
・Mass80g（2mincluding cable）
・Pressure display ・Analog output
・Sweitch output NPN/PNP Output

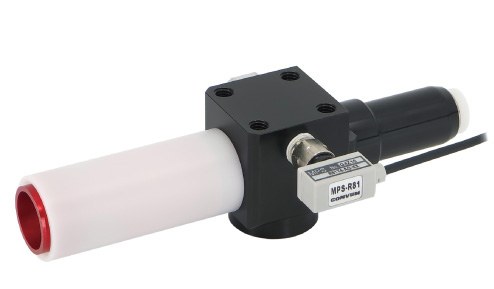

Separate type pressure sensor head
MPS-81 series
・Mass25g（2mmincluding cable）
・Analog output

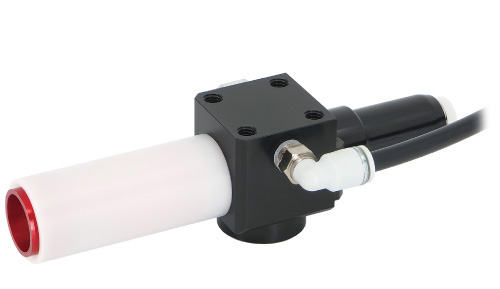

Blow-off air supply
Both pressure sensor installation and burst air supply can be performed. In such cases, ensure that the maximum allowable pressure of the pressure sensor is not exceeded.
For pressure sensor specifications, refer to the pressure sensor catalog or instruction manual.

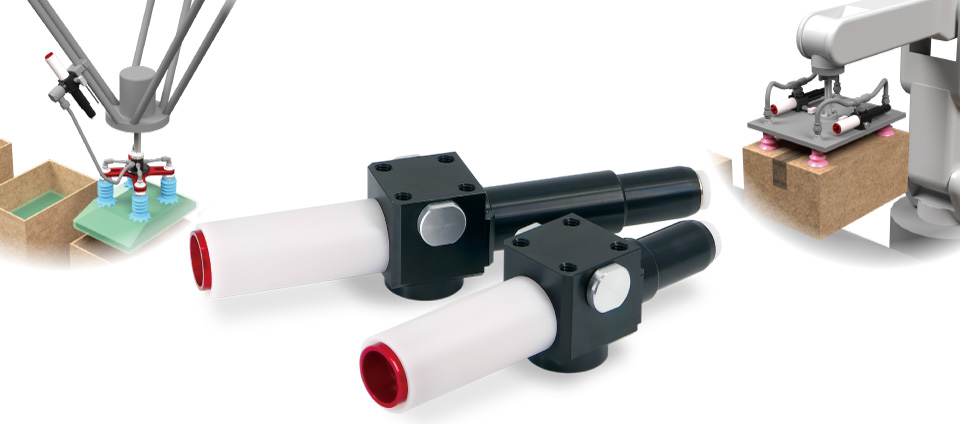

Small multi stage ejector
NCV3
Series
